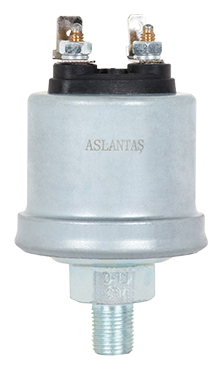

A41001 Oil Pressure Switch

Product code: A41001

Technical specifications
ModelA41001 Oil Pressure Switch
Pressure Level7-10 Bar
WarningWith warning
Resistance Range10-85 OHM
Operating Voltage6 2
Thread10x1mm

Product group: Thermostats (Sensors), Construction Machinery Spare Parts

Product description

The A41001 Oil Pressure Switch is a safety sensor designed to continuously monitor engine oil pressure and protect the system in low-pressure conditions. It is particularly suitable for generators, agricultural machinery, heavy vehicles and marine engine systems.

The A41001 model is built to operate under high temperature and vibration. It sends information to the control panel through its electrical connection and can trigger an alarm or an automatic shutdown mechanism to prevent damage to the system. Its compact structure and standard threaded connection make installation easy.

Features

  • Instant monitoring of engine oil pressure
  • Warning/protection at low oil pressure
  • Compact, leak-proof and durable structure
  • Design resistant to high temperature and vibration
